Length measuring device VEN-T

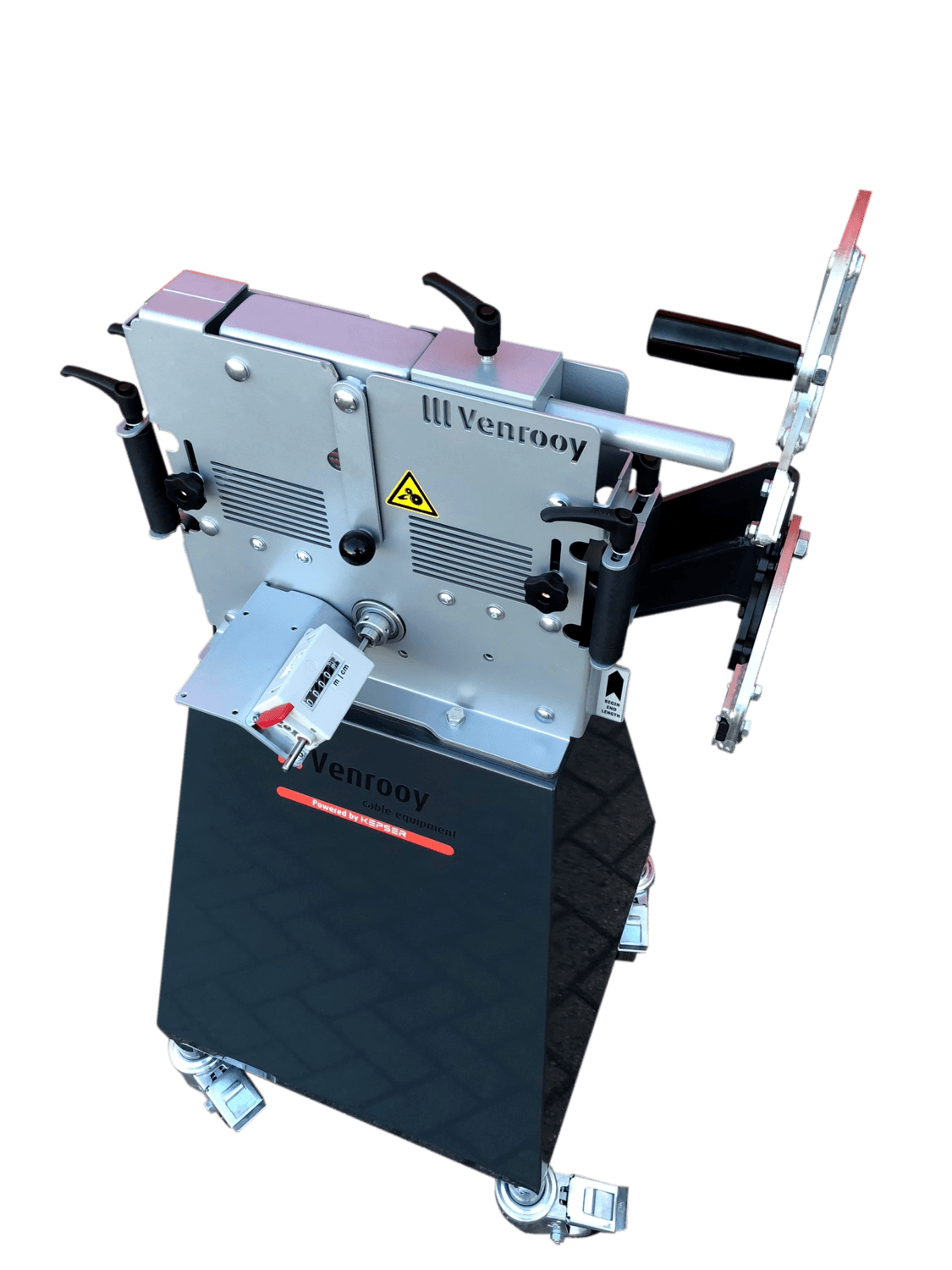

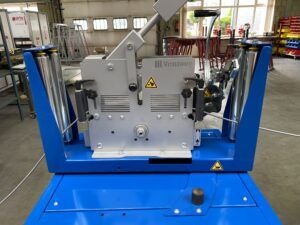

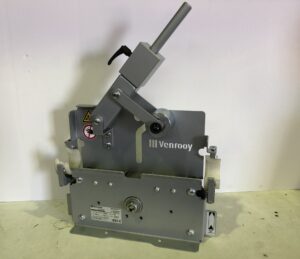

The VEN-T is suitable for measuring cables, ropes and hoses. The cable passage is 5 to 65 millimetres. The analogue counter has a measuring range of 9,999.9 m; measurements are displayed in metres and centimetres. The measuring wheel is supported by ball bearings and has a knurled surface to ensure that the cable remains secure. Guide rollers are located on the input and output sides. If desired, the VEN-T can be adapted for steel wire and can be fitted with an extra heavy-duty and extended detachable counterweight. Optionally, the device can also be mounted on a fixed or mobile base, and can also be fitted with an attachment for measuring extra-thin cable. Optional: the VEN-T can also be calibrated (including calibration certificate in Dutch, English and German).
Specifications
- For measuring cable, rope, flexible hoses
- Cable passage 5 – 65 mm
- Analogue counter
- indication in meter and centimeter
- zero adjustment by a lever
- Measuring wheel with knurled surface and with roller bearings
- Guide and carrying rollers on the in – and outgoing side
