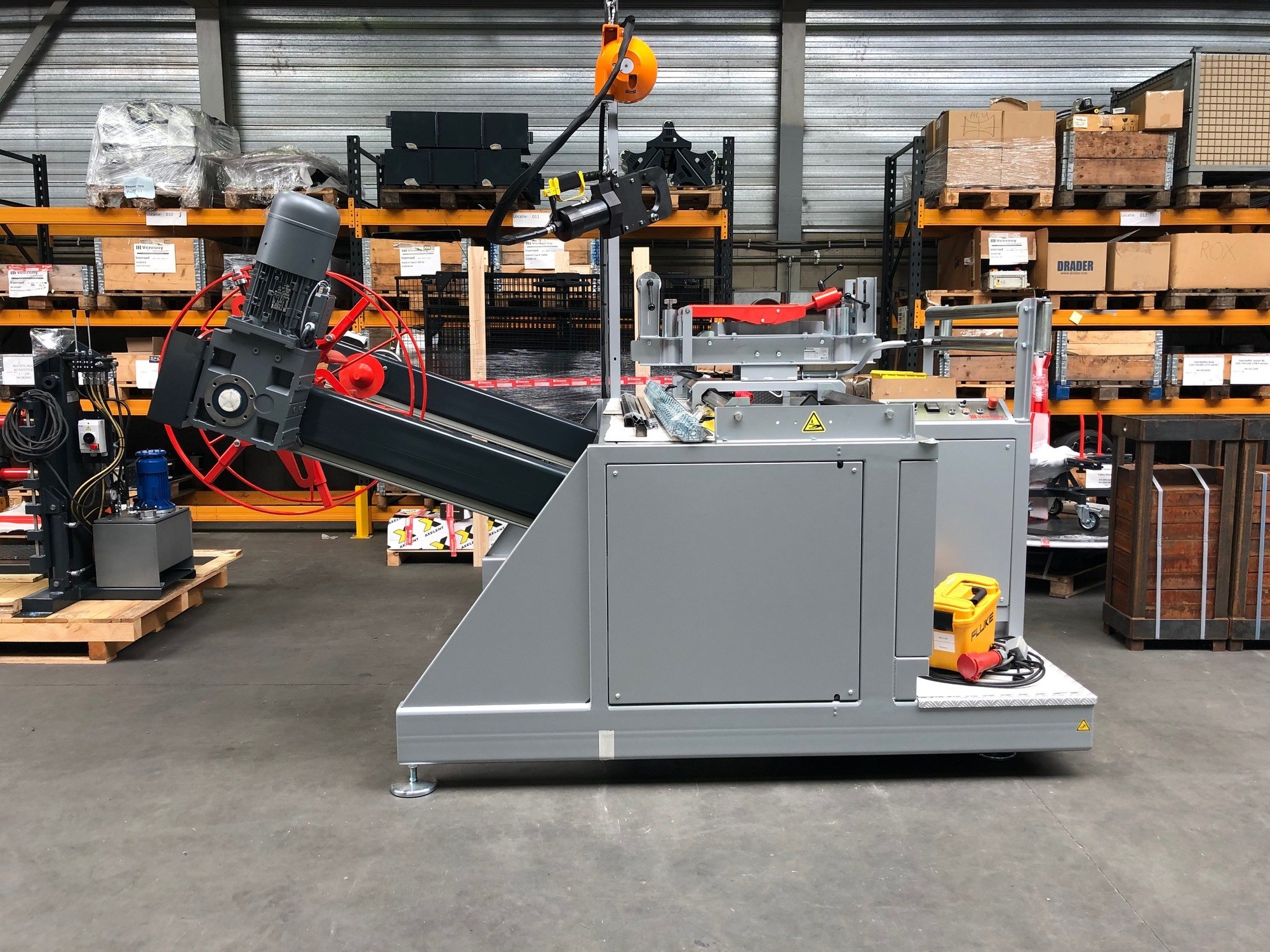

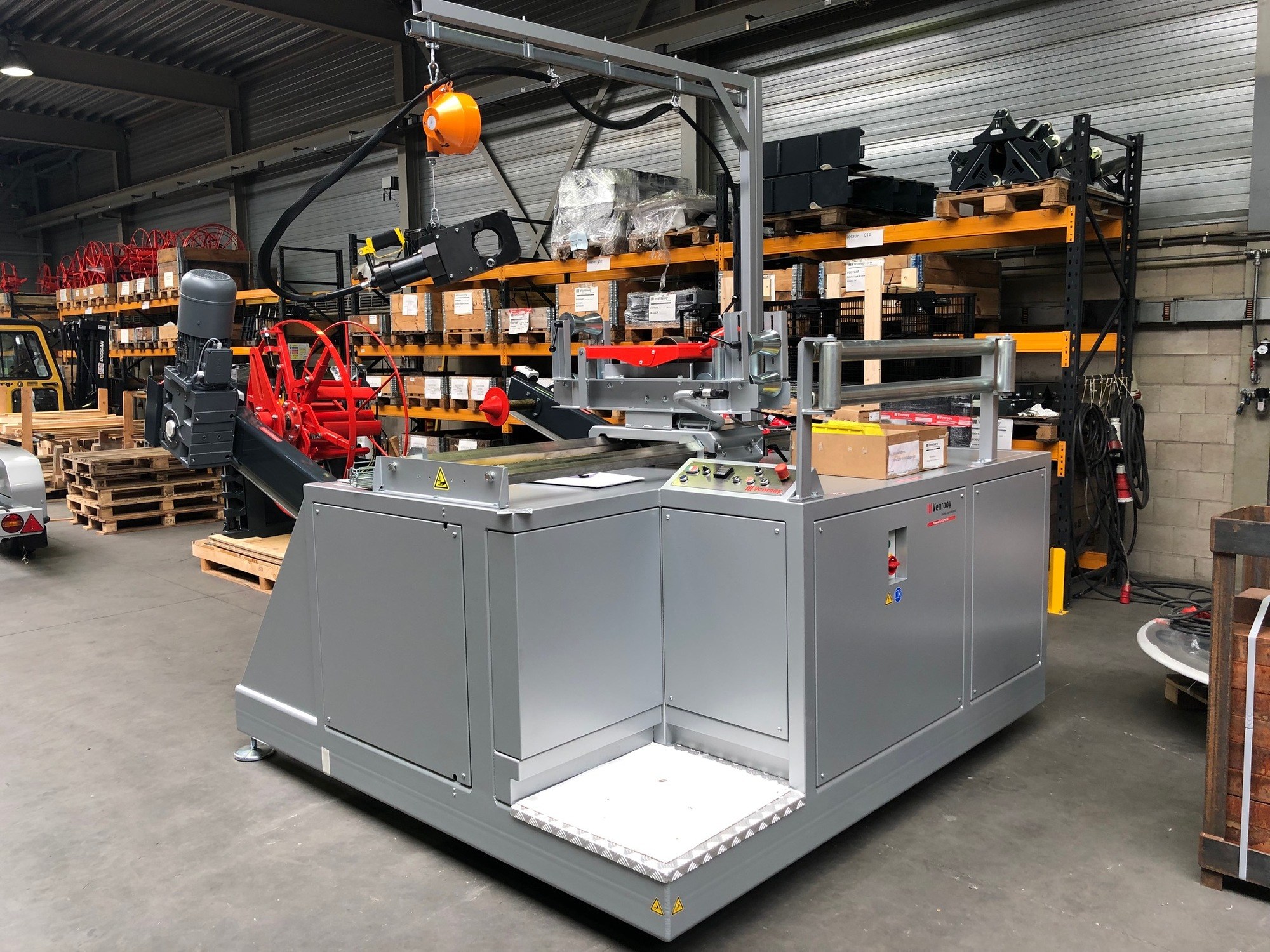

Winding machine VEN-E

The winding machine VEN-E is available in three models. The machine has an electric reel drive (400V), an electro-hydraulic lifting and clamping system with automatic re-clamping and is CE marked. The drum has a stepless speed control. The user-friendly operating panel makes the machine easy to operate by a single person.

Specifications

  • Load capacity 1.500 – 3.000 – 5.000 kg
  • Reel dimensions: Ø 600 – 2.200 mm, Width 300 – 1.350 mm
  • Electro-hydraulic lifting and clamping system (automatic clamping)
  • The drum has a stepless speed control ranging from 0 – 50 RPM
  • Entry roller set
  • Various length measuring devices possible
  • User-friendly operating panel
  • Easy to operate by a single person
  • CE marking
