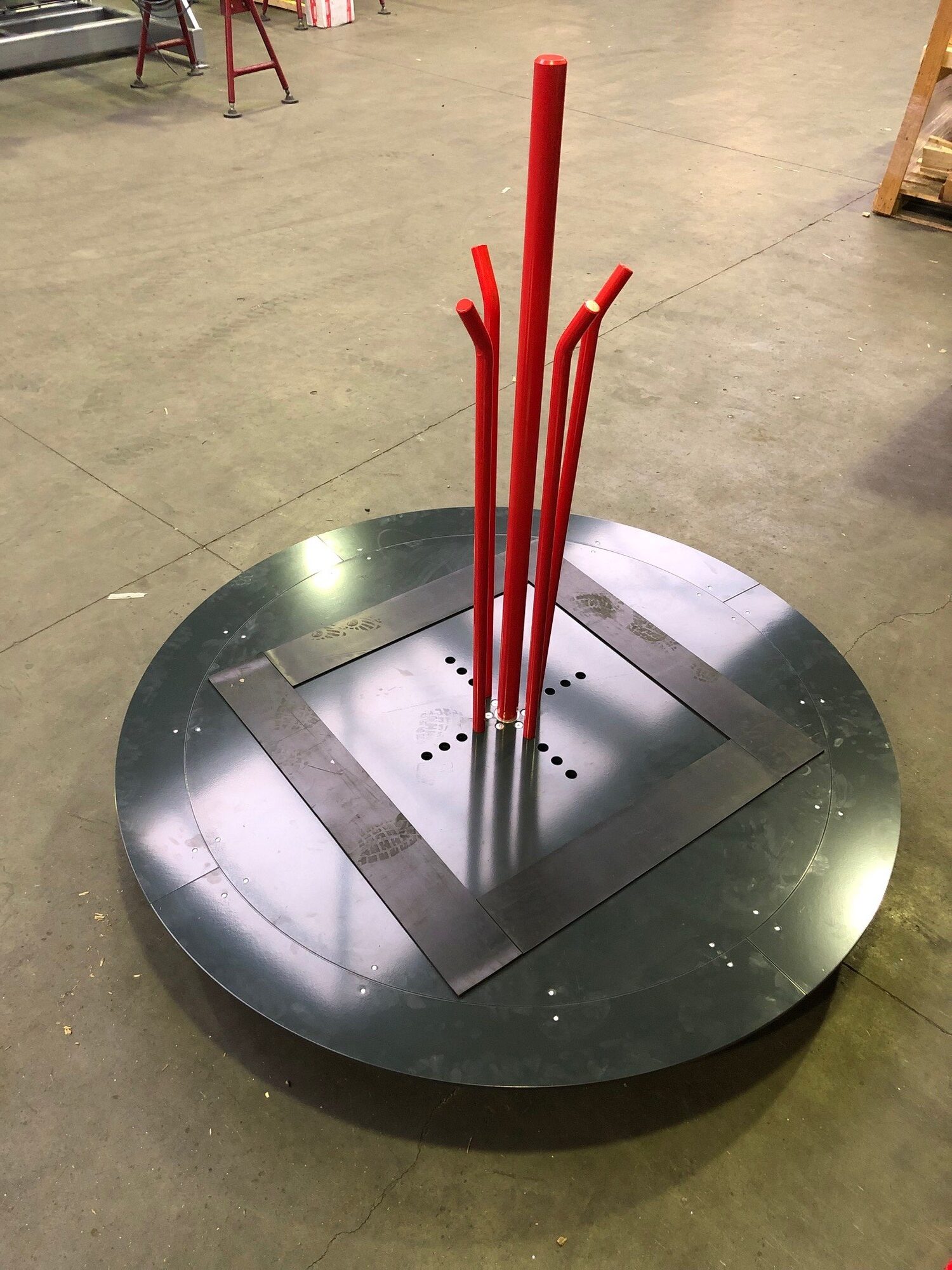

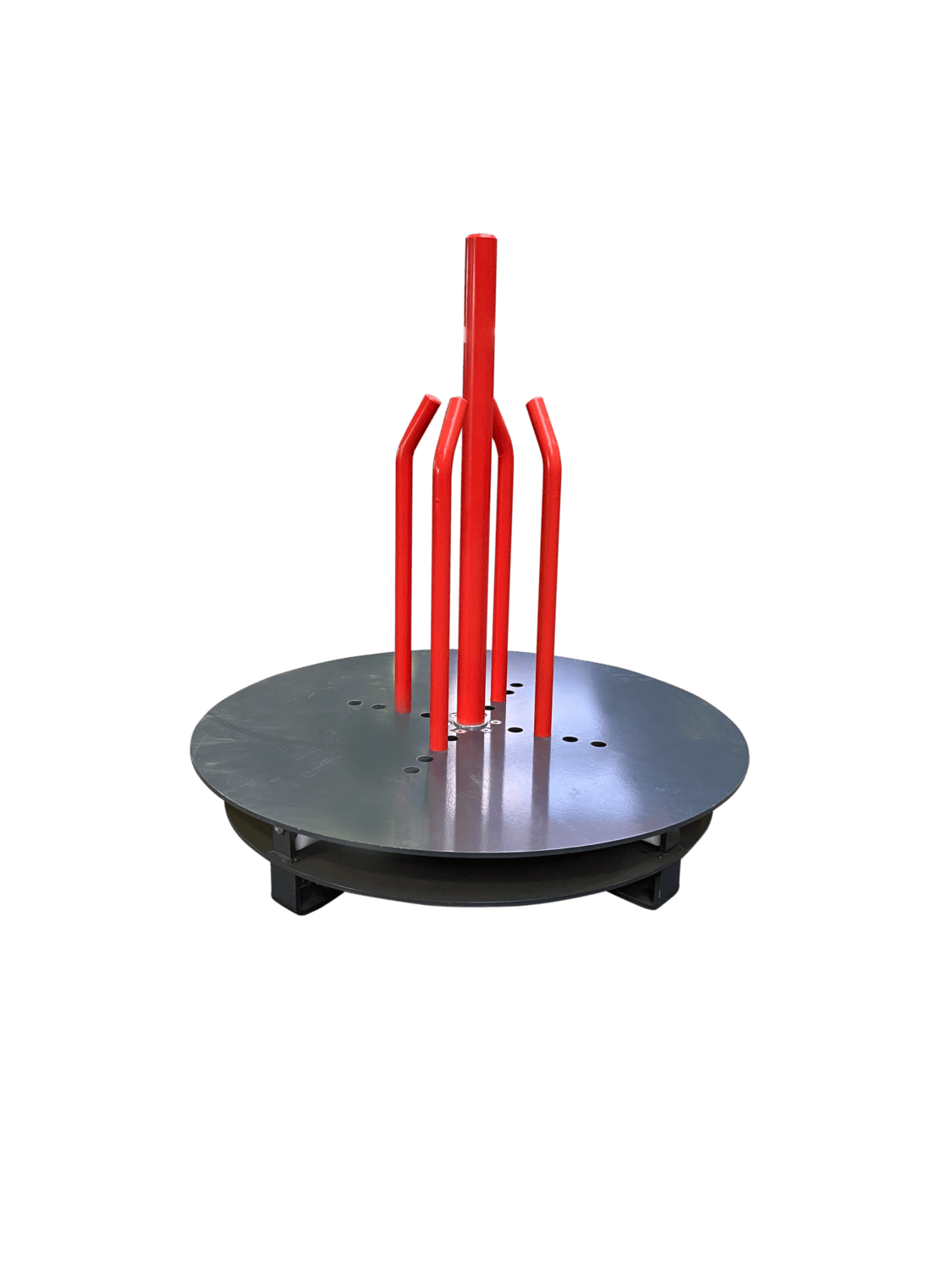

Cable unwinder

A cable unwinder is for unwinding cable or reels up to a maximum weight of 5,000 kg. The cable unwinders are available in different diameters, each with their own maximum load capacity. A central removable shaft is placed on the cable reel for unwinding reels or four removable pins for laying bunches of cables. The cable unwinder is easy to pick up with the forklift (80 mm free for the forklift forks).

Specifications

  • Carrying capacity 1.000 kg, diameter 950mm
  • Carrying capacity 1.500 kg, diameter 1.100mm
  • Carrying capacity 3.000 kg, diameter 1.100mm
  • Carrying capacity 5.000 kg, diameter 1.500mm
  • Central, removable shaft (length 800mm) for drum placement
  • 4 removable pins (length 500mm) to put rings on
  • Adjustable diameter of 200 – 500mm
  • Building height: 190 mm

Options

  • Adjustable brake function
  • bigger diameter 1800mm (for the 5.000 kg capacity)
